1. Root Mechanism: The Inversion Physics and Galvanic Microgrid Isolation

At its electromagnetic foundation, bidirectional residential charging resolves two engineering constraints: high-efficiency bidirectional DC-to-AC conversion and sub-cycle anti-islanding isolation. In standard unidirectional configurations, alternating current from the utility entrance is rectified by the vehicle's onboard charger (OBC). In contrast, bidirectional power extraction bypasses the onboard converter entirely. Following an encrypted ISO 15118-20 Transport Layer Security (TLS) handshake over the Control Pilot line, the vehicle's Battery Management System (BMS) energises its internal DC fast-charging contactors, presenting 350V–800V DC directly to the external pins of a CCS1, CCS2, or SAE J3400 (NACS) inlet.

This direct current enters an offboard Silicon Carbide (SiC) inverter operating at switching frequencies between 40 kHz and 100 kHz. The inverter synthesises a low-distortion 120V/240V split-phase AC sine wave (<3% Total Harmonic Distortion). Crucially, the system continuously samples grid impedance, voltage (120 V ± 5%), and frequency (59.3 Hz – 60.5 Hz per IEEE 1547-2018). If a utility outage occurs, the Microgrid Interconnection Device (MID) mechanically disengages the main service lugs in less than 16 milliseconds, establishing a fully isolated local microgrid to prevent dangerous backfeeding into municipal power lines:

+--------------------------------------------------------------------------------------------------+

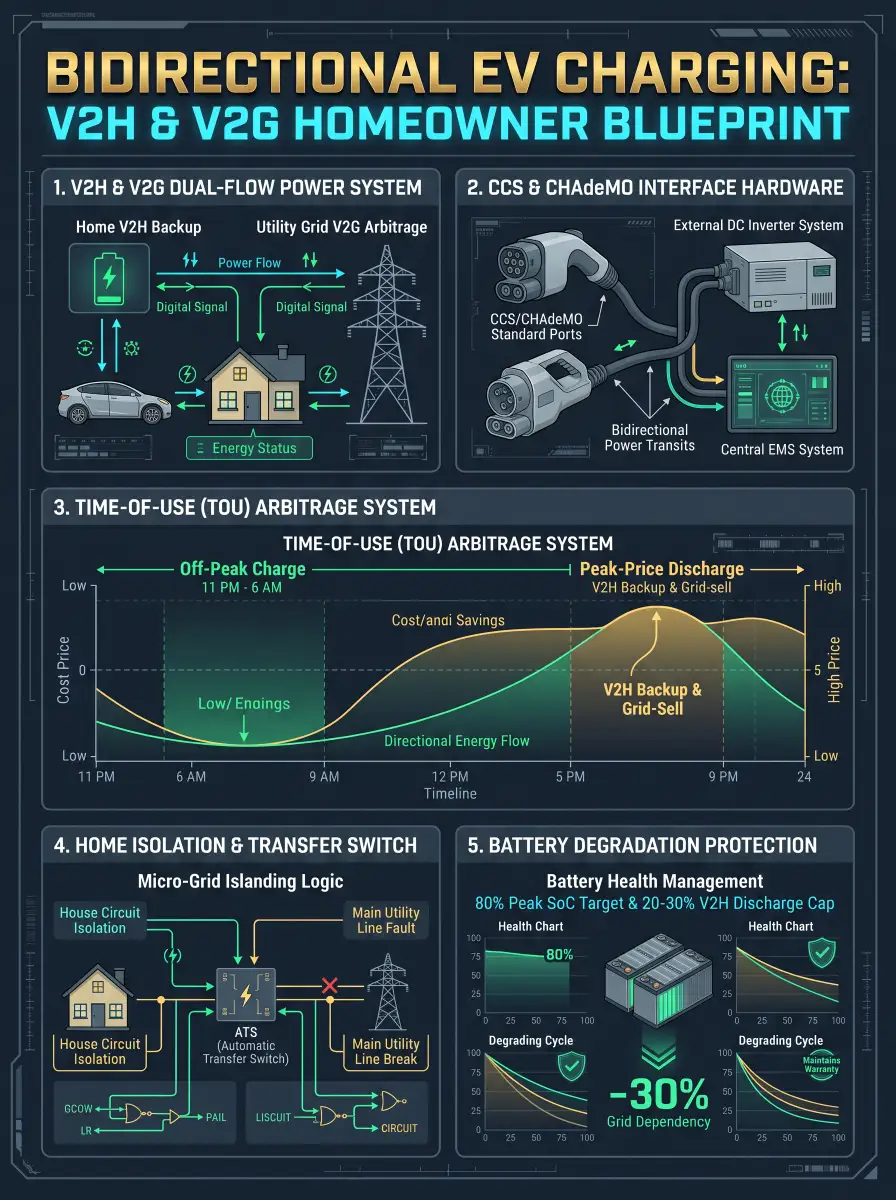

|                   BIDIRECTIONAL ENERGY ROUTING TOPOLOGY (V2H & V2G SUB-SYSTEMS)                  |
+--------------------------------------------------------------------------------------------------+
  [ Solar PV Array ] --------> [ Hybrid Solar Inverter ]
                                          | (400V DC Bus Sync)
                                          v
  [ EV Traction Battery ] <=====> [ Bidirectional EVSE ] <=====> [ Microgrid Isolation Gateway ]
    (77 kWh - 131 kWh)     (DC)   (UL 9741 SiC Inverter)  (240V) (UL 1741-SB / MID Transfer Switch)
                                                                       ||                  ||
                                                    [Islanded Backup <16ms]              [Grid Sync]
                                                                       //                  \\
                                                                      v                     v
                                                         [Smart Critical Panel]    [Utility Grid Meter]
                                                         - Heat Pump (Soft-Start)  - Net Export ($0.48)
                                                         - Refrigeration & Pumps   - Demand Response VPP
                                                         - IT & Emergency Circuits   (OpenADR 2.0b / G99)
+--------------------------------------------------------------------------------------------------+

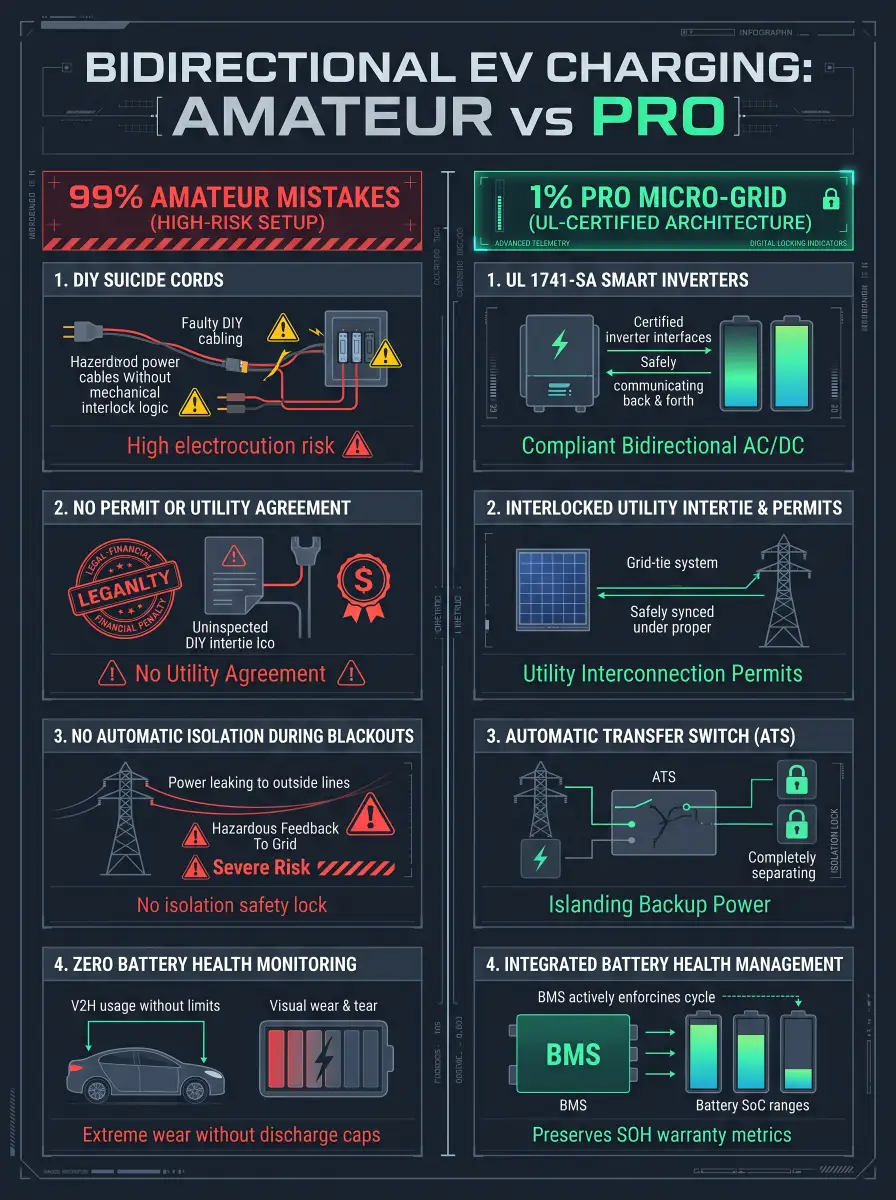

2. What Most Guides Get Completely Wrong About Residential V2H and V2G

Consumer-facing energy literature frequently publishes misleading assumptions regarding bidirectional charging, leading homeowners to purchase incompatible hardware or risk voiding manufacturer warranties. Three pervasive fallacies require technical correction:

• ✕ The Battery Degradation Myth:

  The Amateur Belief: "Powering your house from your car will ruin your $15,000 EV battery within 2–3 years."
  The Pro Reality: Battery degradation is driven by high C-rates (thermal stress), extreme calendar temperatures, and prolonged saturation at 100% State of Charge (SoC). Highway driving pulls 1.0C to 2.5C, while Level 3 DC fast-charging pushes 1.5C to 3.0C. In contrast, running a 9.6 kW continuous residential load off a 90 kWh battery represents a negligible 0.106 C discharge rate. Cycling cells within a shallow 35% to 75% SoC window induces less than 0.015% capacity degradation per full cycle equivalent. Over 10 years of active daily V2H arbitrage, this equals less than 1.8% to 2.1% in additional capacity loss, which is far lower than typical annual calendar degradation (1.5% to 2.0%/year).

• ✕ The Generic Level 2 Pass-Through Fallacy:

  The Amateur Belief: "Any 48-amp Level 2 charger can backfeed your electrical panel if you install a manual generator interlock."
  The Pro Reality: Standard J1772 / Mennekes Level 2 EVSEs are simple pass-through safety relays. They possess zero internal inversion silicon, zero anti-islanding synchronisers, and no capability to command the vehicle's contactors into reverse discharge mode. Backfeeding raw alternating current back into an onboard charger will immediately trigger a permanent hardware lockout on the vehicle's power electronics, voiding the factory powertrain warranty and violating NEC Article 625.

• ✕ Ignoring Compressor Inrush Amperage (LRA):

  The Amateur Belief: "A 9.6 kW continuous bidirectional inverter can automatically power an entire 3,500 sq. ft. central HVAC home during an outage."
  The Pro Reality: While a 9.6 kW inverter delivers 40A continuous at 240V, starting a conventional 4-tonne single-stage heat pump compressor requires an instantaneous Locked Rotor Amperage (LRA) surge of 80A to 110A for 100 to 250 milliseconds. Without an external microfarad soft-starter or intelligent sub-panel load shedding, this inductive spike triggers the inverter’s silicon protection circuit (Fault 0x41: Overcurrent), shutting down the home microgrid immediately upon compressor startup.

3. Step-by-Step Execution Protocol: The 4-Stage Microgrid Engineering Standard

Installing a code-compliant, utility-interconnected bidirectional charging system demands strict adherence to service panel ampacity ratings, grounding topologies, and communication configurations:

Step 1: Perform NEC Article 220 Load Sizing & Busbar Verification (NEC 705.12).

Execute a formal whole-home load calculation in accordance with NEC 220.82. Residential bidirectional installations require a minimum 200-amp main service panel. Under the NEC 705.12 120% Busbar Rule, the combined rating of the main utility overcurrent protection device (OCPD) and the bidirectional backfeed breaker cannot exceed 120% of the panel busbar's continuous current rating:

If the calculation yields a violation, resolve the constraint by either: (a) down-rating the main service breaker to 175A (if calculated peak load permits), (b) installing a 225A-rated busbar panel, or (c) executing a supply-side connection (line-side tap per NEC 705.11) with a dedicated fusible service disconnect prior to the main breaker.

Step 2: File IEEE 1547 & Rule 21 Utility Interconnection Permits

Prior to physical hardware mounting, submit a Distributed Energy Resource (DER) Interconnection Application to your municipal Distribution System Operator (DSO) or electric utility (e.g., PG&E, SCE, National Grid, UK Power Networks). Submit equipment Single-Line Diagrams (SLDs) confirming compliance with UL 1741-SB and IEEE 1547-2018. This guarantees that your smart inverter provides mandatory grid-support functionalities, including Volt-VAR reactive power compensation, frequency-watt droop response, and anti-islanding disconnect timings within 160 milliseconds of voltage deviations.

Step 3: Mount Microgrid Interconnection Gateway & Isolate Critical Circuits

Mount the UL 9741 bidirectional DC wallbox adjacent to the vehicle stall, ensuring a minimum 12-inch radial perimeter for unobstructed thermal heatsink convection. Wire the AC line into a dedicated Microgrid Interconnection Device (MID) or Automatic Transfer Switch (ATS). Segregate home circuits by routing critical continuous loads (refrigeration, networking, lighting, medical apparatus, and water pumping) into a dedicated 100A or 125A subpanel. Concurrently, wire a solid-state soft starter directly across your central heat pump compressor terminals, reducing inductive startup inrush from 90A down to <26A.

Step 4: Configure State-of-Charge (SoC) Buffers & Automate V2G Arbitrage

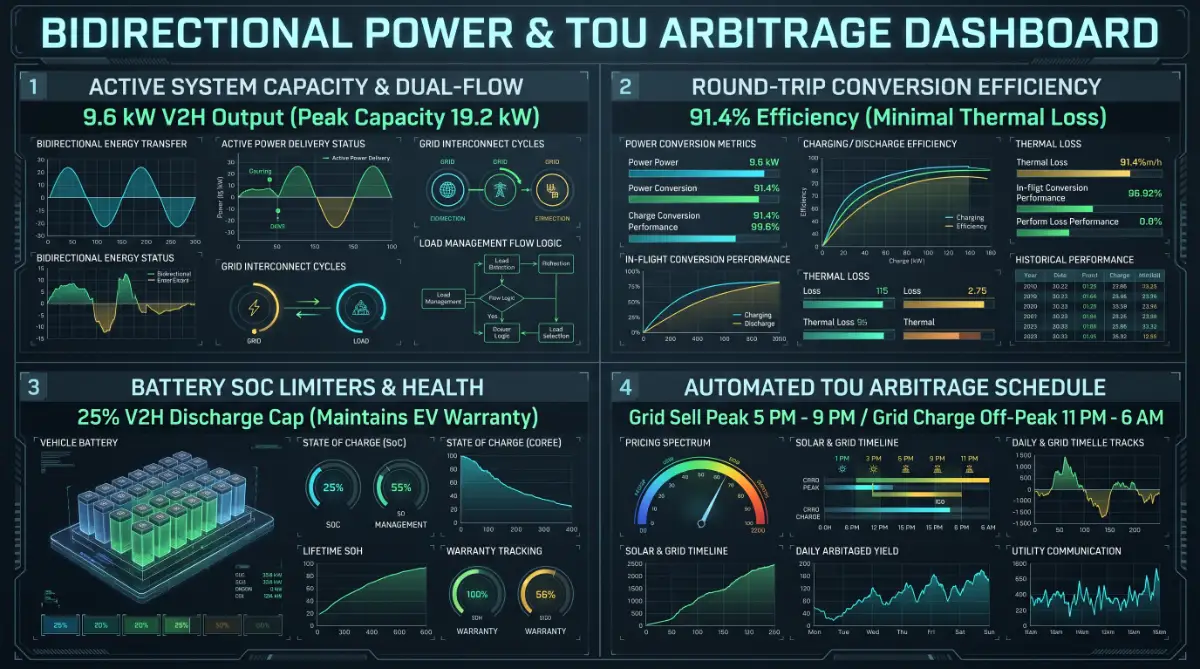

Access your Energy Management System (EMS) gateway interface via Modbus TCP or the manufacturer's Commissioning API. Hard-code a non-negotiable 20% emergency reserve floor. This reserves 15 kWh to 26 kWh of stored energy for unforeseen grid events and emergency driving range (40–60 miles) while protecting cell anodes from accelerated dissolution. Next, schedule daily Time-of-Use (TOU) arbitrage rules: set automatic V2H self-consumption or V2G export between 16:00 and 21:00 (peak tariff: $0.48 to $0.65/kWh) and schedule low-cost grid replenishment between 01:00 and 05:00 (off-peak tariff: $0.08 to $0.12/kWh).

4. Engineering Comparison: DC-Coupled V2H vs. AC-Coupled V2H vs. Stationary ESS

When designing residential resilience, property owners must compare continuous power ratings, usable storage capacity, capital cost per delivered kilowatt-hour, and round-trip conversion efficiency:

5. Critical Edge Cases & Field Troubleshooting Protocols

Operating a residential microgrid exposes power electronics to non-standard electrical conditions. Certified commissioning agents must account for three primary failure modes:

6. Turnkey Commissioning & Electrical Safety Checklist
