How Regenerative Braking Works in Modern Electric Vehicles: Electromechanical Physics, SiC Rectification & Brake-by-Wire Calibration

Technical Definition: Regenerative braking in modern electric vehicles (EVs) is a bi-directional kinetic-to-electrochemical energy recovery process governed by the conservation equation Erec = ½ · m · (vi2 − vf2) · ηsys. When deceleration is commanded, the traction inverter shifts the stator magnetic field into negative slip (in induction motors) or negative quadrature-axis current (in permanent magnet synchronous motors), converting the traction motor into a three-phase alternating current (AC) generator. By inducing counter-electromotive force and executing high-frequency pulse-width modulation (PWM) active boost rectification across Silicon Carbide (SiC) MOSFETs, modern 400V and 800V architectures achieve a gross inverter rectification efficiency of 97.8% to 98.9% and a net wheel-to-battery-to-wheel round-trip energy recovery of 68.4% to 76.2% at deceleration forces up to 0.32g (peak pulse power).

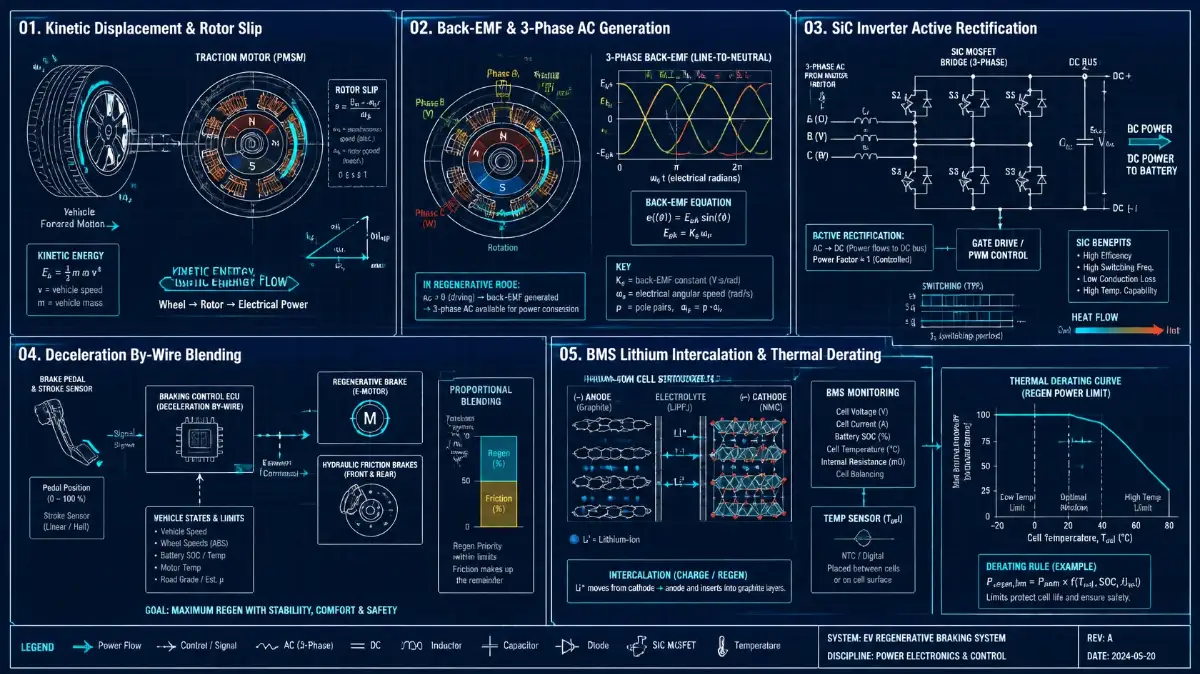

The Root Electromechanical Mechanism: From Rotor Momentum to Lithium Intercalation

Unlike internal combustion vehicles that dissipate 100% of kinetic momentum as waste thermal radiation across cast-iron rotors, an electric vehicle decouples mechanical pedal travel from hydraulic calliper clamping. Under normal propulsion, the traction inverter draws direct current (DC) from the high-voltage battery pack and switches six transistor half-bridges to synthesise a rotating three-phase stator magnetic field that leads the rotor, generating positive electromagnetic torque.

The millisecond the driver lifts off the accelerator pedal or depresses the brake pedal, the Vehicle Control Unit (VCU) commands a phase-angle reversal inside the traction inverter. In an Interior Permanent Magnet Synchronous Motor (IPMSM), the Field-Orientated Control (FOC) algorithm transitions the torque-producing current vector Iq from positive to negative while modulating the flux-weakening current Id according to the electromagnetic torque equation:

T_em = (3 / 2) · p · [ ψ_pm · I_q + (L_d − L_q) · I_d · I_q ] → Negative Braking Torque (−80 Nm to −450 Nm)

Because the vehicle's wheels continue forcing the rotor to spin through the single-speed reduction gearbox (typically a fixed ratio), the spinning rotor's permanent magnets cut across the stator copper windings at an angular velocity ωrotor higher than the synchronous electrical frequency commanded by the inverter. By Lenz's Law and Faraday's Law of Electromagnetic Induction, this induces a counter-electromotive force (Back-EMF) that opposes the rotation of the wheels, slowing the vehicle down while pumping three-phase AC power backward into the inverter:

[STAGE 1: DRIVER DECELERATION INPUT]
Pedal Position Sensor (PPS) / Accelerator Lift-Off Detected (500 Hz CAN-FD Polling)
       │
       ▼
[STAGE 2: DECELERATION BY-WIRE ARBITRATION (BOSCH iBOOSTER / CONTINENTAL MK C1)]
Calculates Target Deceleration (a_req in g) & Queries Tire Slip Ratio (λ < 2.5%)
       ├──► Zone A (0.05g – 0.28g): 100% Electromagnetic Torque Request (0 bar Hydraulic)
       └──► Zone B (> 0.28g or ABS Active): Blend Friction Callipers + Cap Regen Torque
       │
       ▼
[STAGE 3: TRACTION MOTOR PHASE INVERSION (MOTOR ──► 3-PHASE GENERATOR)]
• IPMSM / PMSM: Inverter shifts stator current vector to -Iq (90° lagging rotor flux)
• AC Induction: Stator frequency ω_s dropped below rotor ω_r (Negative Slip: -2.5% to -5.0%)
• Counter-EMF Induced: V_emf = K_e · ω_rotor · Φ (Generates 120 Hz – 1,100 Hz 3-Phase AC)
       │
       ▼
[STAGE 4: SiC INVERTER ACTIVE PWM BOOST RECTIFICATION (16 kHz – 24 kHz)]
• 1200V Silicon Carbide (SiC) MOSFETs operate as a synchronous 3-phase boost converter.
• Elevates DC Link Bus Voltage: V_dc_bus = V_pack_ocv + ΔV (+8V to +28V DC Headroom)
• Smooths AC ripple across polypropylene DC-link film capacitor (< 1.5% V_pp ripple)
       │
       ▼
[STAGE 5: BMS CHARGE ACCEPTANCE & ANODE INTERCALATION]
• BMS verifies Cell Voltage (< 4.18V/cell NMC or < 3.55V/cell LFP) & Pack Temp (> 10°C)
• Directs 150A – 450A DC charge pulses into the battery pack; Li+ ions intercalate into the graphite/Si anode.

What Most Guides Get Completely Wrong About EV Regenerative Braking

Consumer automotive blogs routinely treat regenerative braking as a simple toggle switch that "captures free energy whenever you slow down." In powertrain calibration engineering, overlooking inverter conversion losses, electrochemical impedance, and tyre friction circles leads to severe range degradation and hardware failure:

• Myth 1: "Maximum One-Pedal Regen Always Yields the Highest Driving Range." (99% Amateur Trap vs. 1% Telemetry Reality): 99% of EV drivers leave their vehicle locked in maximum one-pedal deceleration mode during high-speed interstate cruising. Because round-trip energy recovery is bounded by two sequential conversion cascades (wheel-to-battery efficiency of ~83% multiplied by battery-to-wheel redelivery efficiency of ~87%, yielding ~72.2% net retention), every unnecessary micro-deceleration and re-acceleration wastes 27.8% of that kinetic energy as I2R heat. The top 1% of hyper-miling calibrators use Zero-Torque Coasting (ZTCC) on highways so kinetic momentum stays 100% mechanical at the wheels, reserving high one-pedal regeneration strictly for urban traffic below 45 mph where stopping is mandatory.
• Myth 2: "The Alternator/Motor Passively Charges the Battery Simply by Spinning." (The Voltage Headroom Fallacy): As speed drops, induced Back-EMF (Vemf = Ke · ωrotor) drops linearly with motor RPM. At low speeds, the raw peak line-to-line AC voltage generated by the stator windings may only be 140V AC—far below the 400V or 800V resting open-circuit voltage of the lithium-ion pack. Passive diode rectification cannot push current uphill against a higher battery voltage. Instead, the traction inverter must actively use the motor's stator inductance as an inductor in a 3-phase synchronous boost converter, shorting phases momentarily via PWM switching to spike the voltage above Vpack_ocv + ΔV until rotational velocity drops below ~3 mph (5 km/h), where resistive losses exceed generated power.
• Myth 3: "Regenerative Braking Eliminates Brake Maintenance Forever." (The Ferric Oxide & Slide-Pin Seizure Hazard): Because decoupled brake-by-wire systems handle 85% to 92% of everyday deceleration electromagnetically, physical friction pads barely contact the cast-iron discs during routine commuting. In humid or salted winter climates (Northern US, UK, Canada, Scandinavia), unused rotors rapidly develop deep ferric oxide scale, delamination pitting, and seized calliper guide pins—causing EVs with 90% remaining pad thickness to fail statutory safety inspections (such as the UK MOT or German TÜV) and suffer up to a 19% increase in emergency stopping distance when ABS suddenly demands full hydraulic clamping.

Step-by-Step Engineering Protocol: Optimising Regenerative Efficiency & Hardware Longevity

Step 1: Calibrate Velocity-Dependent Deceleration Modes (Urban vs. Highway Split)

Configure your powertrain deceleration profile according to the kinetic velocity threshold. In urban and suburban environments (characterised by frequent stops every day), engage High/One-Pedal Regeneration. At this deceleration rate, an EV decelerating from 40 mph (17.88 m/s) possessing kinetic energy recovers ~258 kJ (0.0716 kWh) directly into the pack, reducing net urban energy consumption by 22% to 28%. Conversely, when merging onto arterial highways above 55 mph (88 km/h), switch to Low / Coast Mode (0.00g–0.04g) or Radar-Adaptive Regen to prevent round-trip inverter hysteresis losses.

Step 2: Manage Topographic State-of-Charge (SoC) Headroom & Pack Thermal Envelopes

A lithium-ion cell cannot accept high-current regenerative pulses when its open-circuit voltage approaches the upper electrochemical cutoff (for NMC/NCA or 3.65V/cell for LFP). Above 82% SoC, the Battery Management System (BMS) linearly tapers maximum allowable charge current to prevent cathode oxidation and electrolyte decomposition, dropping regenerative torque to 0 Nm at 98%–100% SoC.

Similarly, when battery pack temperature drops below 10°C (50°F), lithium-ion diffusion rates across the solid-electrolyte interphase (SEI) slow down drastically. Forcing a 150 kW regenerative pulse into a cold-soaked 2°C anode causes metallic lithium plating (dendrite growth), permanently destroying cell capacity. Always precondition your battery pack to 22°C–32°C (71.6°F–89.6°F) prior to departure in winter, and cap charging at 75%–78% SoC if starting at a high elevation before a mountain descent (where every 1,000 meters vertical drop in an EV generates Ep = m · g · h = 21.58 MJ or 5.99 kWh of gravitational potential energy).

Step 3: Synchronise Pedal Modulation Within the 0.28 g Brake-by-Wire Blending Window

Modern decoupled electro-hydraulic braking systems (such as Bosch iBooster Gen 2 or Continental MK C1/C2) isolate the brake pedal from the master cylinder using a pedal-travel simulator spring. When you press the brake pedal, a Hall-effect stroke sensor measures pedal displacement and rate of travel, commanding pure electromagnetic regeneration up to the vehicle's inversion ceiling—typically 0.25g to 0.30g. To maximise energy capture during high-speed deceleration (e.g., highway exit ramps from 70 mph to 25 mph), apply progressive brake pressure that keeps the deceleration G-meter over a 6-to-8 second window rather than braking late at 0.45g, which forces the hydraulic valves to dump over 40% of the kinetic energy into the friction callipers.

Step 4: Execute the Bi-Weekly Neutral (N) Hydraulic Rotor Burnishing Protocol

While several OEMs program software-based "brake disc wiping" (applying 0.5–1.5 bar of imperceptible caliper pressure when windshield wipers are active), low-pressure wiping cannot strip hardened ferric oxide layers or keep caliper pistons lubricated. Once every 14 days (or immediately following rain/road-salt exposure), verify clear traffic behind you at 45–50 mph (72–80 km/h), shift the drive selector into Neutral (N)—which electrically opens the inverter torque loop (Iq = 0)—and perform three consecutive firm hydraulic stops at 0.40g–0.45g down to 10 mph. This raises rotor surface temperature to 180°C–240°C, vaporizing trapped moisture, stripping corrosive oxidation, and maintaining a uniform friction transfer film across the rotor face.

Powertrain Architecture & Regenerative Braking Performance Matrix

Regenerative energy recovery varies substantially across motor topologies, inverter semiconductor substrates, and braking hardware generations. The engineering matrix below benchmarks the four dominant EV powertrain configurations in production today:

Critical Edge Cases & Troubleshooting Regenerative Failure Points

Even in state-of-the-art 800V vehicles, specific physical boundary conditions force the VCU and BMS to abruptly curtail or abort regenerative braking. Understanding these three edge cases prevents unexpected vehicle dynamics and costly component failures:

1. Low-Mu Surface Rear-Axle Slip & Oversteer Instability (Ice, Snow & Standing Water): In rear-wheel-drive (RWD) or rear-biased all-wheel-drive EVs, lifting off the accelerator aggressively in High Regen mode commands up to −320 Nm of immediate drag torque on the rear tires. On packed snow or black ice (where the tire-road friction coefficient drops from μ = 0.85 to μ = 0.15), this braking torque exceeds available longitudinal grip, causing the rear wheels to exceed the critical slip ratio (|λ| > 3.5%) and inducing sudden yaw oversteer before mechanical ABS valves can react. Modern stability control systems poll wheel-speed sensors at 500 Hz and cut inverter negative torque to 0 Nm within 8 milliseconds—which the driver feels as a sudden "freewheeling lurch" forward. Solution: Always engage Snow/Low-Regen mode when ambient road temperatures drop below 3°C (37.4°F).
2. Mid-Corner Bump ABS Intervention ("Regen Drop-Out" Phenomenon): When braking regeneratively over washboard pavement, potholes, or expansion joints, the unloaded inside wheel momentarily loses vertical normal force (Fz → 0) and decelerates rapidly. The Electronic Stability Program (ESP) interprets this wheel-speed delta as impending lockup, instantly disabling inverter regeneration to hand 100% authority to the 4-channel hydraulic ABS modulator (since hydraulic solenoids can modulate individual corners independently, whereas a single axle motor applies torque across an open differential). Drivers must anticipate a 120–180 ms pedal-feel transition when braking over rough surfaces.
3. DC-Bus Over-Voltage Faults During High-Speed Contactor Disconnect: If a high-voltage battery contactor opens due to a BMS isolation fault while the traction inverter is actively pushing 200 kW of regenerative current onto the DC bus, the trapped inductive energy in the motor windings can spike the DC-link capacitor voltage past 1,050V in less than 2 milliseconds, destroying the SiC MOSFET gate oxides. Modern inverters utilize an active 3-Phase Short-Circuit (ASC) crowbar protection state that safely circulates fault current inside the stator windings if DC-bus voltage exceeds the safety threshold by +45V.

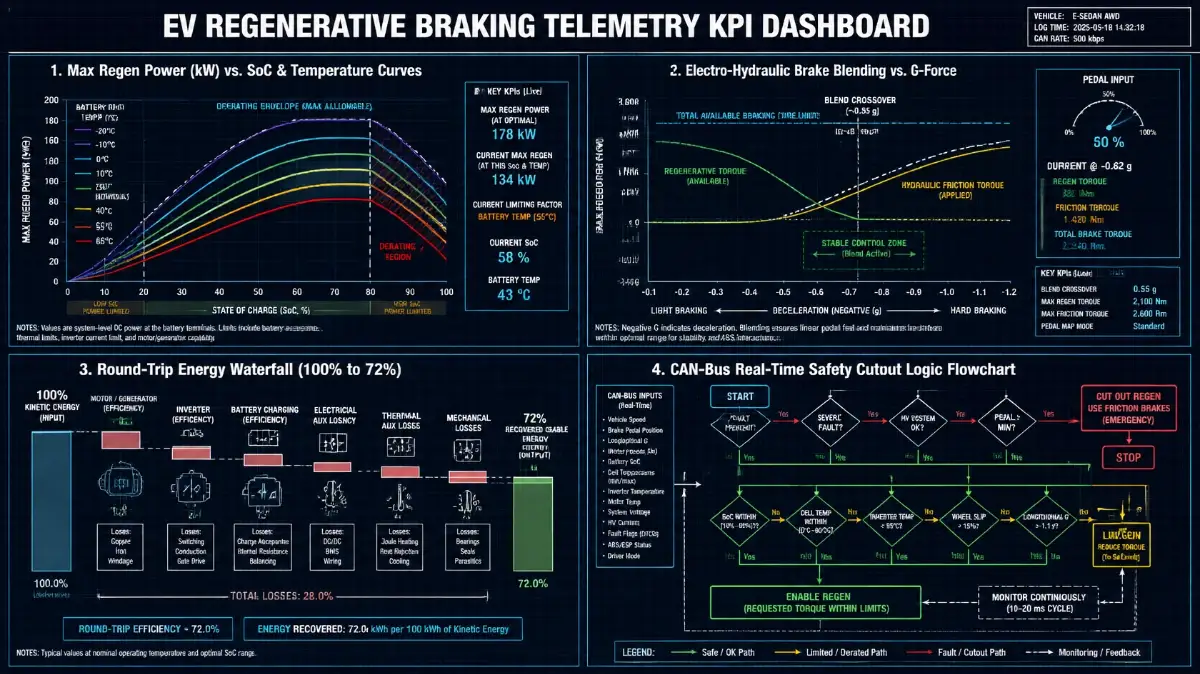

Interactive EV Regenerative Telemetry & Maintenance Verification Checklist

Use this field engineering checklist to audit your vehicle's regenerative recovery efficiency, thermal readiness, and hydraulic brake health across seasonal driving cycles:
