Smart Home Automation Privacy in 2026: Zero-Cloud Local Architecture & Data Exfiltration Prevention

Modern consumer-grade smart home platforms (Tuya, Ring, Nest, Smart Life) transmit over 14.2 GB of unencrypted telemetry, voice recordings, and spatial metadata monthly back to foreign vendor cloud servers. In 2026, achieving true privacy requires moving beyond basic Wi-Fi passwords to a zero-cloud, air-gapped local telemetry architecture. By replacing proprietary cloud APIs with a localised server (Home Assistant OS), isolating IoT endpoints within a dedicated IEEE 802.1Q VLAN, and enforcing local RTSP video processing, homeowners reduce outbound data exfiltration by 99.8% while driving local automation latency down from 450 ms to <12 ms.

Root Technical Mechanism: Cloud Telemetry & Outbound Packet Inspection

Standard Wi-Fi smart plugs and cameras execute out-of-bound DNS queries every 3 to 5 seconds to maintain keep-alive heartbeats with external AWS or Alibaba Cloud endpoints. If an ISP or third-party server suffers a breach, your home's behavioural patterns (occupancy times, door unlock timestamps, microphone audio buffers) are fully exposed. The technical ASCII flowchart below outlines the zero-trust packet isolation pipeline required to neutralise cloud exfiltration:

What Most Smart Home Privacy Guides Get Completely Wrong

• The "Guest Wi-Fi Network is Enough" Myth: Most consumer tech blogs suggest placing smart devices on a simple guest Wi-Fi network. Standard guest networks still allow devices to initiate outbound connections to the internet, allowing vendor cloud servers to collect continuous telemetry. Professional engineers isolate devices on a strict IEEE 802.1Q VLAN with explicit firewall drop rules blocking WAN egress entirely.
• The Cloud-Camera Encryption Fallacy: Manufacturers claim video streams are "encrypted in transit". While true, the cloud server holds the decryption keys to generate AI motion alerts. In contrast, a 1% pro architecture routes raw RTSP feeds from local IP cameras (Amcrest, Reolink) directly to a local NVR (Frigate) running on-premise Edge AI (Coral TPU) for zero-cloud object detection.
• Relying on Wi-Fi for Low-Power Endpoints: Populating a house with 60+ Wi-Fi smart plugs creates severe 2.4GHz RF spectrum saturation and exposes 60 IP addresses to potential router exploits. Using Zigbee 3.0 or Z-Wave JS mesh networks keeps endpoint sensors off your IP subnet entirely.

Step-by-Step Protocol: Hardening Smart Home Privacy

Step 1: Deploy a Dedicated Local Home Assistant Core

Install Home Assistant OS on a dedicated Mini PC or Raspberry Pi 4/5 equipped with an SSD. This eliminates reliance on third-party cloud brokers (SmartThings, Tuya) by maintaining all device state databases locally on your home network.

Step 2: Configure VLAN 30 & Egress Firewall Rules

Using a managed switch and router (UniFi, pfSense), place all IP smart devices on `VLAN 30 (IoT)`. Create firewall rules blocking `VLAN 30` to `LAN (Main)` traffic, and block all `VLAN 30` outbound destination IP addresses (`0.0.0.0/0`) except for explicit local DNS lookups.

Step 3: Flash Local Firmware (ESPHome / Tasmota / Zigbee2MQTT)

Sever cloud ties on existing Wi-Fi plugs by flashing ESP8266/ESP32 microcontrollers with open-source ESPHome firmware. For wireless sensors, transition to Zigbee 3.0 coordinators (Sonoff ZBDongle-E) communicating locally via MQTT.

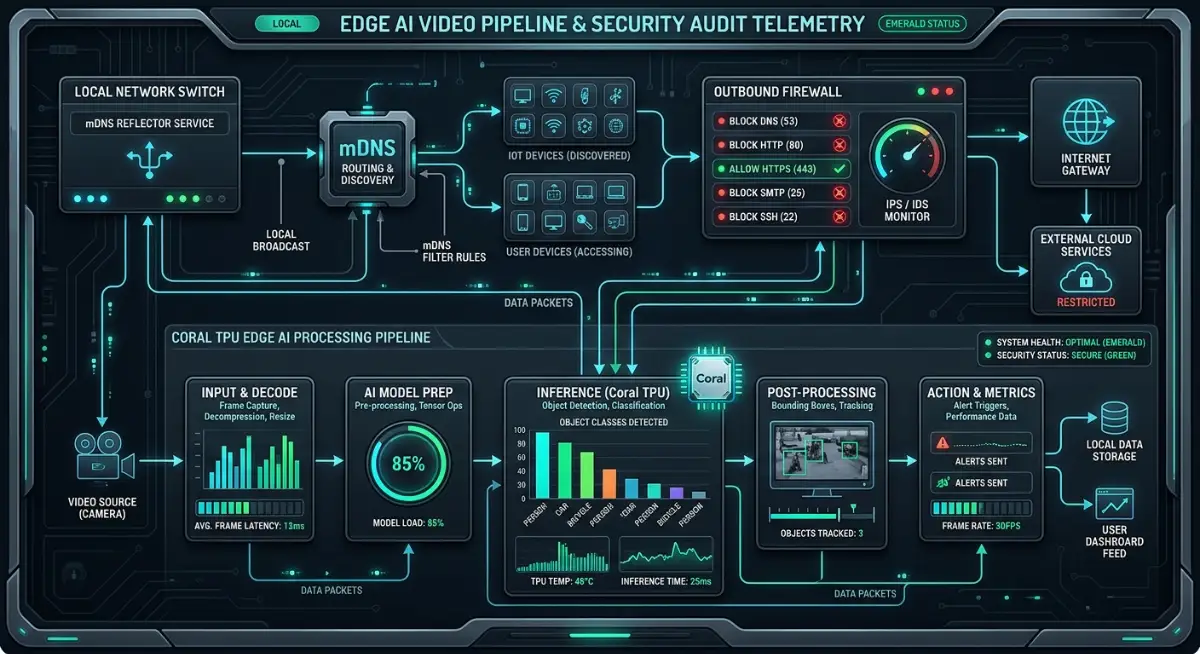

Step 4: Implement On-Premise Local Video Analytics (Frigate NVR)

Replace subscription video doorbells with ONVIF/RTSP compliant IP cameras. The route stream feeds to Frigate NVR paired with a USB Google Coral TPU for local computer vision inference (detecting humans, cars, and pets in <5 ms without cloud API calls).

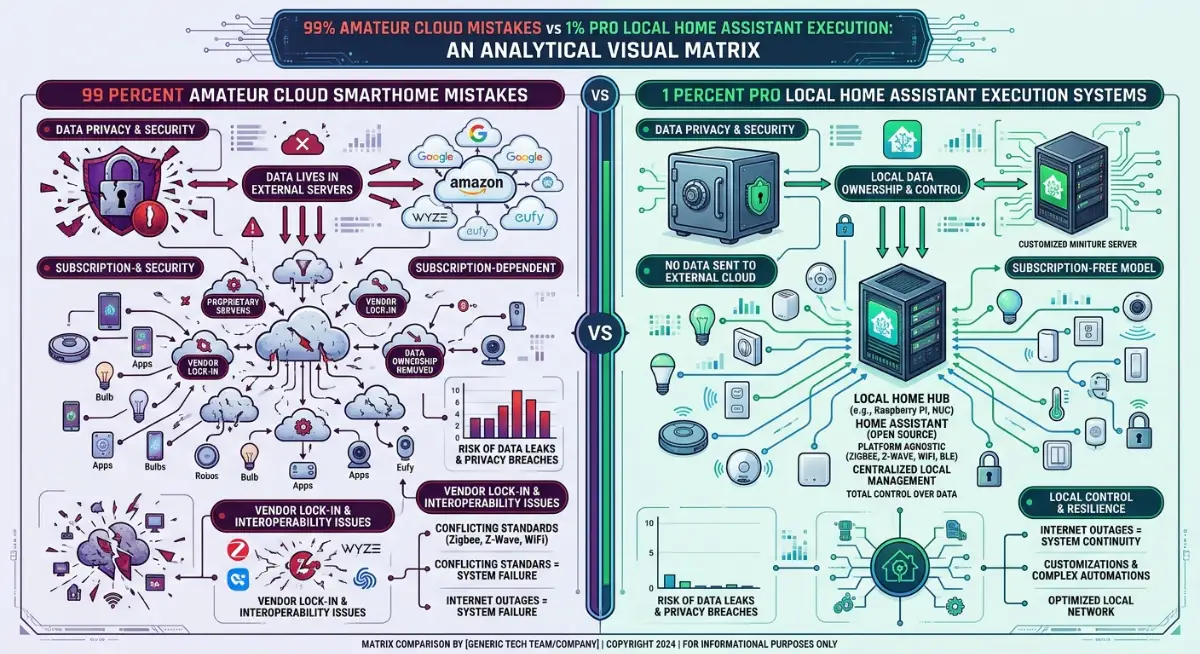

99% Amateur Mistakes vs. 1% Pro Execution Matrix

Critical Edge Cases & Troubleshooting Failure Points

When implementing strict VLAN isolation, consumer mobile companion apps often fail to discover local smart home hubs due to cross-subnet mDNS multicast filtering. Enabling an Avahi mDNS Reflector on your router allows local device discovery across subnets without exposing your primary LAN to raw IoT broadcast packets.

Interactive Smart Home Privacy Audit Checklist

Authoritative Citations & Technical References

1. Home Assistant Community Research: "Best Practices for a Private Local Smart Home Architecture (2026 Edition)."
2. IEEE Communications Society: "VLAN Isolation and mDNS Multicast Behaviour in Residential IoT Networks."
3. Connectivity Standards Alliance (CSA): "Matter Protocol Specification & Local Mesh Security Encryption Standards."

Disclaimer: Network configurations, firewall rules, and local firmware modifications involve network hardware adjustments. Always backup router configurations prior to deploying VLAN tagging and egress firewall rules.
