Spatial Computing Explained: The Architectural Blueprint for the Future of Human-Computer Interaction

Spatial computing is the mathematical and programmatic unification of digital computation with three-dimensional physical space, powered by real-time Simultaneous Localisation and Mapping (SLAM), sub-12-millisecond motion-to-photon latency pipelines, dense environmental meshing, and multimodal gaze-and-gesture tracking. Moving beyond flat, screen-bound computing (smartphones, desktop monitors) is not an incremental cosmetic upgrade; it is an architectural paradigm shift that transforms human-computer interaction (HCI). By digitising the physical environment into a persistent geometric coordinate system, spatial computing allows software logic, contextual assets, and digital interfaces to interact dynamically with physical surfaces, real-world lighting, and user intent.

The Root Mechanism: How Volumetric Sensor Fusion and Spatial Anchors Function

Traditional computing separates user input from display output: a mouse, keyboard, or capacitive touchscreen inputs two-dimensional (X, Y) coordinate vectors to manipulate pixels on an isolated flat panel.

Spatial computing replaces this abstraction with a continuous loop of volumetric sensing, sensor fusion, and spatial rendering:

This interaction loop relies on five core computational subsystems:

• Visual-Inertial Odometry (VIO) & SLAM: Six-degree-of-freedom (6DoF) tracking continuously calculates an observer's exact spatial coordinates (X, Y, Z) and angular orientation (Pitch, Yaw, Roll). High-frequency data from Inertial Measurement Units (accelerometers and gyroscopes operating at >1,000 Hz) is fused with feature-tracking optical cameras via Extended Kalman Filters (EKF), mapping environmental visual landmarks to eliminate positional drift.
• Dense Surface Reconstruction & Spatial Meshing: Time-of-Flight (ToF) sensors or solid-state LiDAR units pulse light waves to calculate distances down to the millimetre. The system converts raw point clouds into polygonal surface meshes in real time, assigning semantic labels (e.g., floor, wall, table, ceiling). This enables digital occlusion—allowing physical objects (like your hand or a coffee cup) to realistically block digital elements placed behind them.
• Motion-to-Photon Passthrough Compositor: In video see-through (VST) architectures, cameras capture the real world, route the video stream through image signal processors (ISPs) and neural processing units (NPUs), composite digital overlays, and re-project the result onto micro-OLED displays in under 12 milliseconds. Crossing this sub-12 ms threshold is critical: any greater delay violates the human vestibulo-ocular reflex (VOR), causing sensory mismatch and severe nausea.

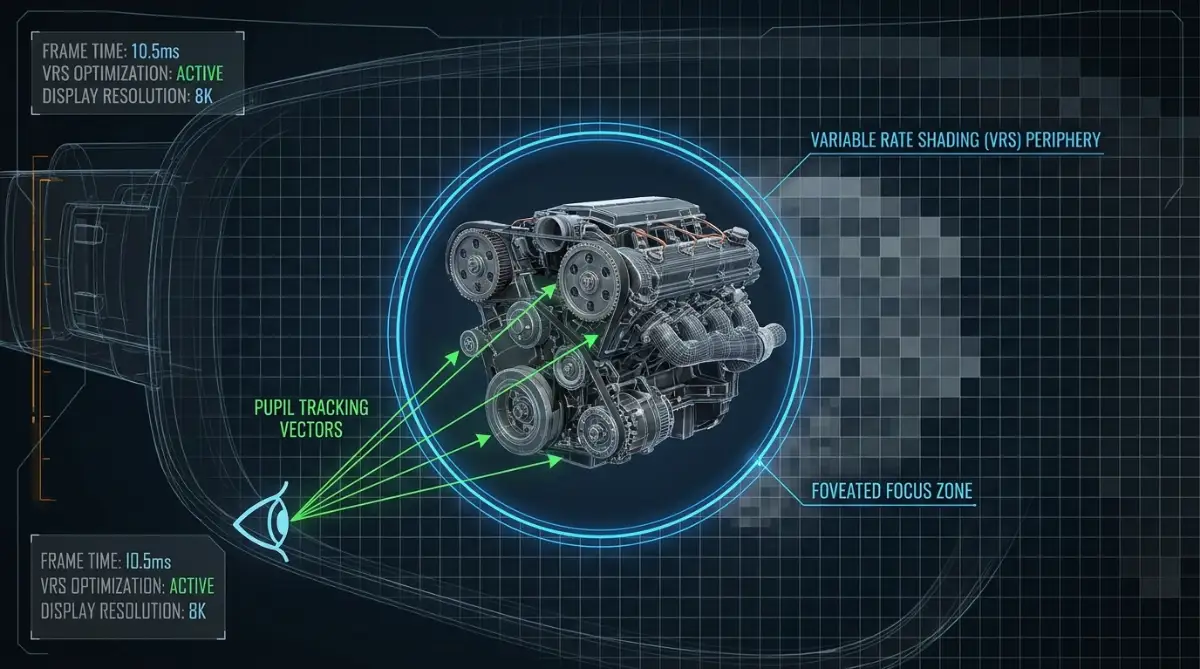

• Foveated Rendering via High-Speed Eye Tracking: Human eyes perceive high-resolution detail only within a tiny central region of the retina called the fovea centralis (roughly 1° to 2° of the visual field). Near-eye infrared (IR) cameras track pupil position from 90 Hz to 120 Hz. The graphics engine renders the precise area you are looking at in full resolution while dramatically down-sampling peripheral textures, slashing GPU shader workload by up to 50% to 75%.
• Gaze-and-Pinch Human-Computer Interaction: Eliminating physical plastic controllers requires unifying eye tracking with micro-gestural recognition. Gaze provides targeting selection (functioning as the cursor), while computer vision models track hand kinematics to register micro-pinches between the index finger and thumb as primary clicks, drastically reducing user motor fatigue.

What Most People and Industry Observers Get Completely Wrong

Mainstream media and early technology reviews routinely promote fundamental misconceptions regarding what spatial computing actually entails:

• The "Spatial Computing is Just VR Headsets Rebranded" Myth: Virtual reality (VR) is fundamentally an isolationist medium; it disconnects users from their physical surroundings and drops them into a synthetic, pre-rendered world—primarily optimised for gaming and simulation. Spatial computing is the exact inverse: it is environment-aware and additive. It anchors digital assets into the context of your living room, cleanroom, or corporate office, maintaining uninterrupted connection with real-world coworkers and physical architecture.
• The Controller-Centric Interaction Fallacy: Early mixed-reality adopters assumed that spatial interfaces would rely on plastic handheld wand controllers with joysticks and triggers. Handheld physical hardware creates cognitive friction in everyday productivity. True spatial computing relies on passive, zero-friction input: eye gaze, micro-pinch hand tracking, voice intent models, and spatial audio feedback.
• Ignoring the Physics of Dynamic Photometric Lighting: Amateurs treat augmented reality as floating, semi-transparent 2D sticker graphics placed arbitrarily in front of a camera. High-fidelity spatial computing requires continuous environmental lighting estimation. The system continuously maps the temperature, direction, and intensity of ambient room lights, casting realistic drop shadows and specular reflections on digital objects so they share physical lighting parity with real objects in the room.

Step-by-Step Technical Implementation Blueprint

Architecting a production-grade spatial computing experience requires deploying an OpenXR-compliant, four-tier execution pipeline.

Step 1: Initialise the Spatial Runtime via OpenXR

Ensure multi-platform compatibility by building on the Khronos Group OpenXR standard, avoiding proprietary vendor-locked APIs.

• Configure Reference Spaces: Establish the coordinate system. Utilise XR_REFERENCE_SPACE_TYPE_LOCAL for head-relative interactions and XR_REFERENCE_SPACE_TYPE_STAGE for room-scale boundaries where the origin is pinned to the physical floor.
• Enforce Zero-Tolerance Frame Timing: Calibrate your engine loop (e.g., custom C++, Unity, or Unreal) to hit a minimum continuous 90 frames per second (fps) per eye, maintaining a per-frame render budget of under 11.1 milliseconds.

XrReferenceSpaceCreateInfo spaceCreateInfo{XR_TYPE_REFERENCE_SPACE_CREATE_INFO};
spaceCreateInfo.referenceSpaceType = XR_REFERENCE_SPACE_TYPE_STAGE;
spaceCreateInfo.poseInReferenceSpace.orientation = {0.0f, 0.0f, 0.0f, 1.0f};
spaceCreateInfo.poseInReferenceSpace.position = {0.0f, 0.0f, 0.0f};

XrSpace stageSpace;
XrResult result = xrCreateReferenceSpace(session, &spaceCreateInfo, &stageSpace);
if (XR_FAILED(result)) {
// Fall back to local space if the user has not configured room boundaries
}

Step 2: Ingest Environmental Meshes and Apply Dynamic Occlusion

Transform incoming sensory point clouds into real-time colliders and occluders.

• Construct Real-Time Depth Buffers: Extract the depth map generated by external LiDAR and camera tracking arrays. Render the physical room mesh into a depth-only pass in your graphics pipeline before rendering digital objects.
• Enable Semantic Surface Queries: Query the spatial engine to identify real-world planes. If a user spawns a 3D analytics dashboard, anchor its bounding box to a surface tagged SemanticLabel: Desk or SemanticLabel: Wall, applying physics raycasting to prevent digital assets from floating unnaturally through physical obstacles.

Step 3: Implement Cryptographic Spatial Anchor Persistence

If an operator places a digital schematic above an engine block on a manufacturing floor, that digital object must remain locked to the identical millimetre coordinates when they return next week, across reboots.

• Local Spatial Anchors: Generate cryptographic spatial feature vectors corresponding to the local physical topology surrounding the object.
• Cloud Spatial Anchor Synchronisation: Serialise and upload anchor descriptor hashes to a cloud repository (e.g., Azure Spatial Anchors or private enterprise spatial servers). When a second user enters the same room wearing a different device, their SLAM engine matches its local feature map against the cloud descriptor, establishing shared, multi-user spatial coordinate parity.

Step 4: Deploy Foveated Shading and Spatial Audio HRTFs

Complete the perceptual illusion by matching sensory inputs to human neurological processing.

• Dynamic Variable Rate Shading (VRS): Map the eye-tracking gaze vector to your render target. Configure the GPU to render the central foveal zone at 1.0× native resolution, the middle transition zone at 0.5× resolution, and the peripheral boundaries at 0.25× or 0.125× resolution.
• Spatialised Binaural Audio: Never use basic stereo panning. Convolve all digital audio sources using Head-Related Transfer Functions (HRTFs). This filters acoustic frequencies based on the simulated shape of human ears and head geometry, matching sound propagation to the exact distance and physical obstructions of the room.

Spatial Computing Hardware Modalities Comparison Matrix

Critical Edge Cases & Engineering Pitfalls

• The Spatial Drift Problem in Featureless Rooms: Visual-Inertial Odometry relies on detecting visual contrast gradients (edges, textures, corners). If an operator uses a spatial computing device inside a sterile hospital room, a laboratory with blank white walls, or a room with repetitive patterns, the SLAM algorithm loses tracking landmarks. As the user walks, the internal coordinate system experiences spatial drift—causing locked digital models to slide or float away.
  • The Fix: Deploy multi-sensor setups: combine visual VIO with ultra-wideband (UWB) physical beacons, or install high-contrast infrared fiducial markers (AprilTags or ArUco markers) on walls and machinery to anchor coordinate origins.
• The Volumetric Privacy and Gaze-Telemetry Threat: Spatial computing devices capture unprecedented volumes of sensitive biometric data. High-resolution forward-facing cameras continuously map private homes, workplaces, and bystanders without explicit consent. More critically, high-frequency eye-tracking telemetry reveals subconscious neurological responses: pupillary dilation indicates cognitive load, stress, and sexual arousal, while gaze vectors expose reading speed and subconscious financial preferences.
  • The Fix: Operating systems must isolate raw eye-tracking vectors behind secure hardware enclaves (similar to biometric fingerprints). Applications must only receive high-level event notifications (e.g., ElementHovered = True), never the raw floating-point gaze coordinates or pupil dilation telemetry.

The Master Spatial Computing Engineering Checklist

Audit your spatial computing architecture against these foundational operational criteria:

External Authoritative Sources & Further Reading

• The Khronos Group: OpenXR Specification and Runtime Architecture Standards
• IEEE Computer Society: Simultaneous Localization and Mapping (SLAM) - Evolution and Principles
• ACM Transactions on Computer-Human Interaction (TOCHI): Gaze and Gestural Interaction in 3D Interfaces
• W3C Immersive Web Working Group: WebXR Device API Technical Recommendations

Disclaimer: The information provided in this guide is for technical, educational, and architectural planning purposes only. Spatial computing deployments, near-eye optics, and hardware sensor configurations involve complex ergonomic, physiological, and data privacy considerations. Prolonged immersion in near-eye displays can induce vestibular strain, visual fatigue, or situational unawareness in hazardous industrial environments. Always follow vendor safety parameters and consult with qualified systems engineers and privacy counsel before deploying volumetric computing platforms across enterprise operations.
