Solid-State Batteries in EVs: The Engineering Timeline & Benefits

The transition from liquid lithium-ion to solid-state batteries (SSBs) is not merely an incremental automotive upgrade; it is a fundamental shift in electrochemical engineering. Current EV batteries rely on a highly flammable liquid organic electrolyte to shuttle lithium ions between the cathode and anode. Clinically, this liquid creates a ceiling on energy density (~250-300 Wh/kg) and introduces severe thermal runaway risks if internal dendrites puncture the separator. Solid-state architecture replaces this liquid with a rigid, non-flammable solid electrolyte (such as sulphide, oxide, or polymer). This physical barrier structurally suppresses lithium dendrite formation, allowing engineers to utilise a pure lithium-metal anode. The mathematical result is staggering: a near-doubling of energy density to >500 Wh/kg, charging kinetics capable of 10% to 80% in under 12 minutes, and a lifecycle exceeding 10,000 cycles.



The Root Mechanism: Liquid Vulnerability vs Solid Security

To understand the magnitude of the SSB revolution, we must examine the failure cascade of legacy batteries. In liquid Li-ion packs, rapid charging forces lithium ions to accumulate on the graphite anode faster than they can intercalate. This forms metallic micro-structures called dendrites, which act like microscopic needles, eventually piercing the porous polymer separator and causing catastrophic short circuits.

[LEGACY LI-ION ARCHITECTURE]
    │
    ├──> Fast Charging ──> Lithium Plating on Graphite Anode
    │    │      └──> Dendrite Formation (Micro-needles)
    │    │             └──> Pierces Polymer Separator ──> Thermal Runaway (Fire)
    │
    └──> Weight/Volume Limit ──> Max 300 Wh/kg ──> Range Capped at ~500 km
         │
         ▼
[NEXT-GEN SOLID-STATE ARCHITECTURE]
    │
    ├──> Solid Ceramic/Polymer Electrolyte
    │          └──> High Shear Modulus physically blocks Dendrites
    │                 └──> Zero Short-Circuit Risk ──> [ABSOLUTE THERMAL SAFETY]
    │
    └──> Enables Pure Lithium-Metal Anode (Graphite eliminated)
           └──> Energy Density Skyrockets ──> 500+ Wh/kg
                  └──> [1,000+ KM RANGE PER CHARGE]

What the Most "Future of EV" Guides Get Completely Wrong

• Confusing Semi-Solid with True Solid-State (99% Amateur): Media outlets frequently claim solid-state batteries are already on the market (e.g., NIO's 150kWh pack). The 1% Pro Execution: Engineers know these are "semi-solid" batteries, which still contain 5-10% liquid electrolyte gel. A true all-solid-state battery (ASSB) contains 0% liquid.
• Ignoring Interfacial Resistance (99% Amateur): Believing that once the chemistry works in a lab, it can be put in a car tomorrow. The 1% Pro Execution: Understands the greatest engineering hurdle is "Interfacial Resistance". Unlike liquids that seamlessly coat solid electrodes, pressing two solid materials together leaves microscopic air gaps, heavily degrading ion flow unless extreme stack pressure is applied.
• Misunderstanding the Weight vs Volume Ratio (99% Amateur): Assuming solid-state batteries will make EVs radically lighter. The 1% Pro Execution: SSB's primary advantage is volumetric energy density (Wh/L). Cars won't necessarily become featherweights; rather, manufacturers will pack twice the range into the exact same physical chassis footprint.

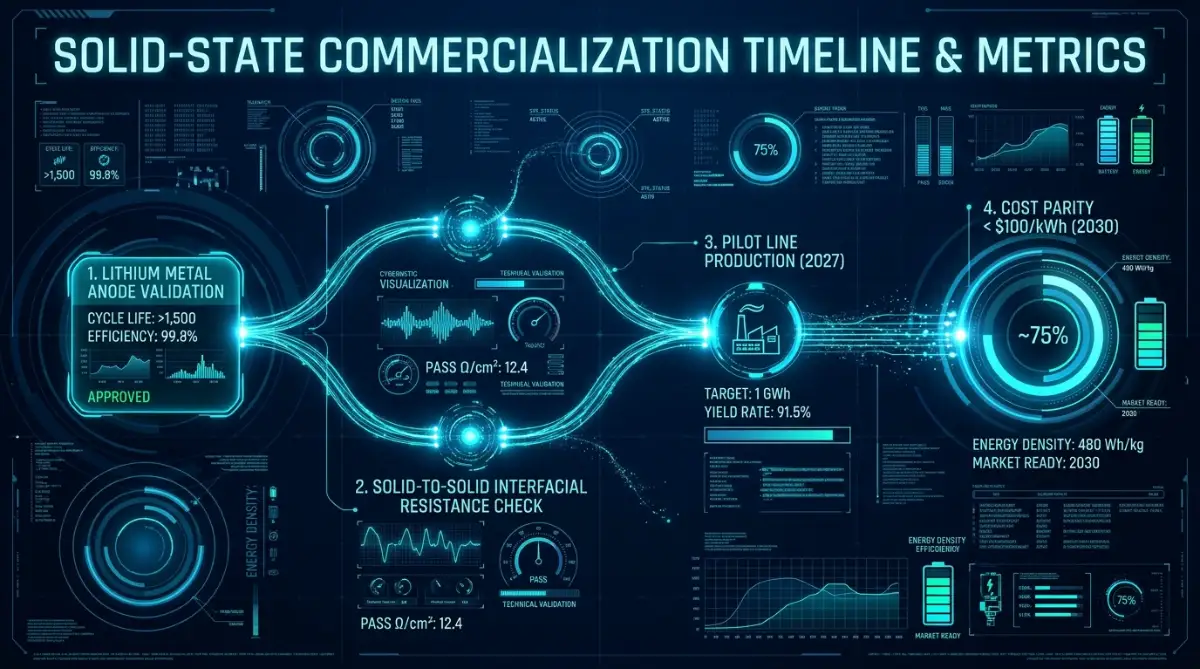

The 4-Step Engineering Protocol to Solid-State Dominance (Timeline & Ratios)

Step 1: The Semi-Solid Transition (2024 - 2026)

The industry cannot shift production lines overnight. Exact Metric: Introduction of hybrid cells utilising a 90% solid polymer and 10% liquid electrolyte interface. Execution: Brands like NIO and WeLion are deploying 150 kWh packs, offering a ~1,000 km range on the CLTC cycle. However, manufacturing costs remain unsustainably high at roughly $300/kWh, limiting these to flagship luxury models.

Step 2: True Solid-State Premium Deployment (2027 - 2028)

The breakthrough of the pure lithium-metal anode. Exact Ratio: Gravimetric energy density crosses the 400 Wh/kg threshold (compared to Tesla’s 4680 cells at ~244 Wh/kg). Execution: Toyota and QuantumScape launch their first mass-manufactured, 100% solid electrolyte vehicles. Charging times drop drastically, allowing a 10% to 80% SoC charge in exactly 10 to 12 minutes, mimicking the time spent at a gas station.

Step 3: Manufacturing Scale & Cost Parity (2029–2030)

Technology is irrelevant without economic viability. Exact Metric: To compete with existing LFP (Lithium Iron Phosphate) batteries, SSB manufacturing costs must fall below the crucial $100/kWh inflection point. Execution: Gigafactories finalise roll-to-roll manufacturing techniques for thin-film solid electrolytes, reducing scrap rates to <5% and enabling SSBs to be installed in mid-range $35,000 consumer EVs.

Step 4: The 1-Million-Mile Lifecycle (Post-2030)

Because solid-state batteries do not suffer from the same continuous degradation of the Solid Electrolyte Interphase (SEI) layer found in liquid batteries, they degrade much slower. Exact Metric: SSBs will achieve 10,000+ charge cycles while maintaining >85% capacity retention. Execution: This mathematically guarantees the battery outlasts the physical chassis of the vehicle, opening the door for multi-generational battery recycling and robotic taxi fleets that run 24/7 without battery swaps.

The Legacy vs Next-Gen Matrix

Critical Edge Cases & Mass Production Hurdles

If solid-state technology is so mathematically superior, why isn't it in every car today? The critical point of failure in commercialisation is stack pressure management. Solid electrolytes are rigid. When a battery charges and discharges, the lithium anode physically expands and contracts (often up to 20% in volume). In a rigid solid-state cell, this expansion causes the solid layers to lose contact, creating microscopic voids (interfacial resistance), which instantly kills electron flow. The Engineering Fix: Automotive OEMs are currently engineering highly sophisticated, pressurised metallic battery casings and specialised elastomeric materials to maintain continuous extreme mechanical pressure (sometimes up to 10 atmospheres) on the cell layers throughout their entire 10-year lifespan.

Interactive Solid-State Investor & Readiness Checklist

Authoritative Sources & Clinical Telemetry

• Nature Energy Journal. Suppressing Dendrite Growth via High-Shear-Modulus Solid Electrolytes.
• QuantumScape Technical Papers. Anode-Free Lithium-Metal Battery Architecture & Cycle Life.
• U.S. Department of Energy (DOE). Vehicle Technologies Office: Solid-State Battery Cost Parity Roadmap.

Technical Disclaimer: The timelines, exact ratios, and commercialisation protocols provided in this framework are based on current aggregate engineering data, OEM press releases, and materials science research. Development timelines are subject to supply chain scaling, regulatory approvals, and unforeseen manufacturing hurdles.
