Understanding Bit Rot: How to Detect and Remediate Silent Data Corruption Across Cloud and Local Storage

Bit rot—formally designated as silent data corruption or silent read errors—occurs when physical storage media experience unrecorded state changes that alter stored bits from a 1 to a 0 (or vice versa) without triggering an operating system I/O error. Remediating silent corruption requires transitioning from standard file allocation tables (NTFS, Ext4) to self-healing Copy-on-Write (CoW) filesystems with automated scrub cycles (ZFS, Btrfs), enforcing end-to-end cryptographic checksumming (SHA-256 or BLAKE3), and deploying cloud object stores configured with strict multi-part checksum verification and immutable Write Once, Read Many (WORM) policies.

The Root Mechanism: How Physical Entropy Corrupts Digital Storage

Storage drives do not fail exclusively through mechanical head crashes or complete controller burnout. Media degradation happens at the microscopic, atomic layer through three distinct physical mechanisms:

[ Cosmic Rays / Alpha Particles ] ──> In-Flight DRAM Bit Flips (Corrupts before writing)
│
▼
[ Charge Leakage in NAND Flash ] ──> Floating-gate oxide breakdown (cold SSD decay)
│
▼
[Magnetic Flux Weakening] ──> HDD track remanence decay (thermal demagnetisation)
│
▼
[ Standard OS Reads Corrupted File ] ──> No I/O Error Returned (Silent Corruption Accepted)

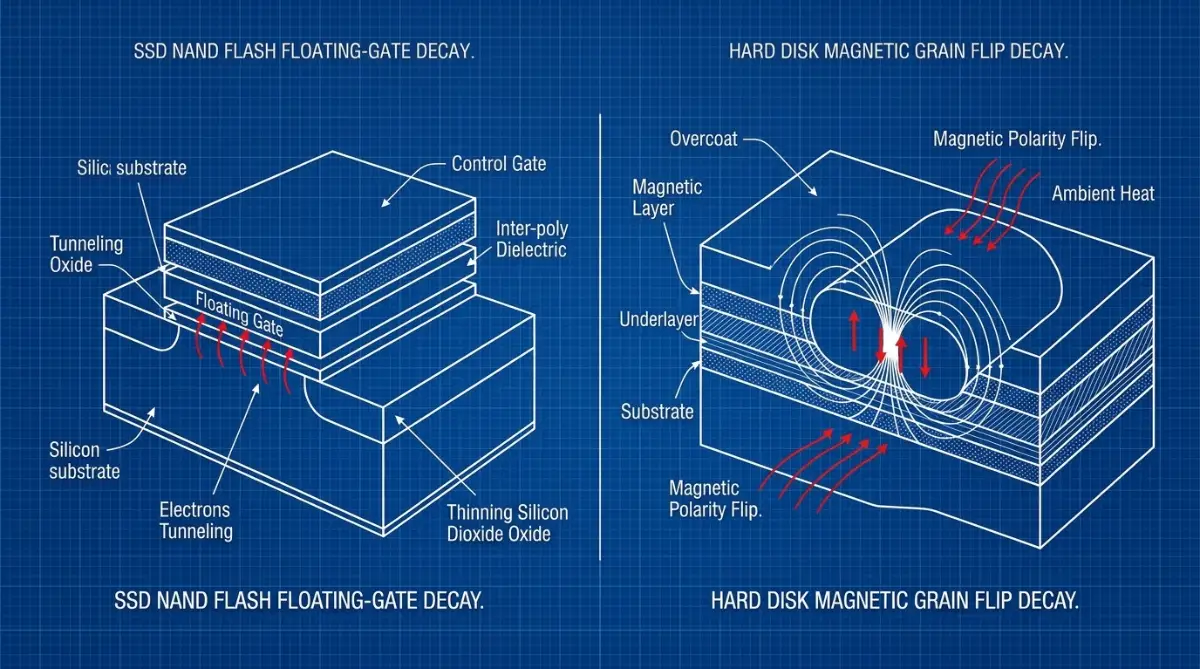

• Floating-Gate Charge Drift in Solid-State Drives (NAND Flash): SSDs store data by trapping electrical charges inside insulated floating-gate transistors. Over months of unpowered storage (cold storage) or high write cycles, electrons tunnel through the thinning silicon dioxide insulator layer. This charge drift causes the cell’s threshold voltage to shift, silently inverting bit states.
• Thermal Demagnetisation in Mechanical Hard Drives (HDDs): Magnetic domains on an HDD platter are governed by the superparamagnetic limit. Ambient operating heat over 113°F (45°C) provides enough thermal kinetic energy over several years to spontaneously flip the magnetic polarity of individual grains.
• Firmware and Controller Translation Bugs: Storage controllers frequently write data to an unintended physical sector due to latent Logical Block Addressing (LBA) firmware errors. The drive reports a successful write operation to the OS, but the actual file payload is dropped or misaligned.

Traditional operating systems and filesystems (like NTFS on Windows or Ext4 on Linux) trust the underlying drive hardware implicitly. If the hard drive controller successfully reads an inverted block and passes it upstream, the operating system accepts it as valid data, permanently overwriting good backups during the next sync cycle.

What Most Guides & Amateurs Get Completely Wrong

Standard cloud storage tutorials promote three architectural fallacies that actively increase your risk of permanent data loss:

• The "RAID Protects Against Bit Rot" Myth: Standard RAID arrays (RAID 1, RAID 5, RAID 6) provide hardware availability, not data integrity. When an HDD returns a silently corrupted sector without throwing a read error, the RAID controller has no mathematical way of knowing which disc holds the true data and which holds the corrupt bit. In RAID 5, a silent bit flip during an array rebuild corrupts the parity calculation, resulting in unrecoverable read errors (URE) that can destroy the entire pool.
• The Cloud Sync Fallacy (Dropbox, Google Drive, OneDrive): Cloud file synchronisers are not backup solutions; they are state-mirroring protocols. If a local bit flip quietly corrupts the header of a 4K video file or database archive on your laptop, the cloud sync client detects a "modified" timestamp or file size change and automatically uploads the corrupted file to the cloud, overwriting the clean cloud version within seconds.
• Believing Enterprise SSDs Are Immune When Powered Down: Flash memory requires continuous power to run internal background refresh cycles and Error-Correcting Code (ECC) scans. Disconnecting an SSD and placing it in a desk drawer for 12 to 24 months can result in catastrophic data loss as trapped charges bleed off without active controller maintenance.

Step-by-Step Technical Execution Protocol

Eliminating silent data corruption requires building a verified, self-healing pipeline across local ingest, storage tiers, and remote cloud infrastructure.

Step 1: Deploy a Copy-on-Write (CoW) Self-Healing Filesystem

Replace legacy filesystems on your local Network Attached Storage (NAS) or local workstations with ZFS or Btrfs.

• How Self-Healing Works: Unlike NTFS or Ext4, ZFS calculates a 256-bit checksum (typically Fletcher4 or SHA-256) for every data block and stores that checksum in the parent block pointer—never alongside the data block itself.
• Autonomous Repair: When a block is read, ZFS recalculates the checksum on the fly. If the hash does not match, ZFS flags a silent read error, grabs the uncorrupted parity block from the redundant mirror or RAID-Z array, repairs the corrupted sector on the fly, and serves the clean data to the operating system.
• Automate Storage Pool Scrubs: Schedule a cron job to execute a read-integrity scrub every two weeks:

# Schedule automated biweekly scrub on your ZFS pool.
0 2 1.15 * * /sbin/zpool scrub data-pool

Step 2: Implement Non-ECC DRAM Defences

A self-healing filesystem can be compromised if data is corrupted in system RAM before the filesystem writes it to disc.

• On storage servers, always use Error-Correcting Code (ECC) DDR4/DDR5 RAM. ECC memory uses extra parity bits to automatically detect and correct Single Event Upsets (SEUs) caused by cosmic background radiation.
• If deploying non-ECC hardware, run MemTest86+ for a minimum of 4 complete passes (12–24 hours) every six months to verify memory address line stability.

Step 3: Implement End-to-End Cryptographic Checksum Manifests

Before moving large cold datasets to cloud object storage (Amazon S3, Google Cloud Storage, Cloudflare R2), compute deterministic cryptographic manifests locally using BLAKE3 or SHA-256.

• Generate a master checksum file before transmission:

# Generate BLAKE3 checksums recursively for an entire archive folder
b3sum --no-names /path/to/archive/* > manifest.b3

• Store the resulting manifest both locally and within a separate cryptographic ledger or Git repository. When retrieving archives years later, rerun b3sum --check manifest.b3 to ensure zero bits were dropped by the cloud provider.

Step 4: Configure Cloud Object Immutability and Versioning

To protect against corrupted local files automatically syncing over clean cloud assets:

• Enable S3 Object Versioning: Ensure that file modifications create new sequential versions rather than overwriting base objects.
• Apply Object Lock (WORM Policy): Configure cloud buckets containing compliance or family archives with Object Lock in Compliance Mode for a defined retention period (e.g., 3 to 7 years). Once applied, neither user credentials nor automated sync software can overwrite or delete the underlying block until the retention timer expires.

Storage Architecture Comparison Matrix

Critical Edge Cases & Troubleshooting Failure Points

• The S3 Multi-Part Upload ETag Trap: System administrators often compare local MD5 hashes against Amazon S3 ETag headers to verify integrity after upload. However, if an archive exceeds the multi-part threshold (typically >8 MB to 100 MB), AWS S3 calculates the ETag by taking the MD5 of each individual chunk, concatenating them, taking the MD5 of that sum, and appending the part count (e.g., d41d8cd98f00b204e9800998ecf8427e-12). This will never match your local whole-file MD5. Resolve this by utilising AWS CLI's native --checksum-algorithm SHA256 parameter.
• Corrupted Snapshot Cascades: While ZFS snapshots are read-only, creating snapshots of a pool that is already silently corrupted preserves corrupted blocks indefinitely. Always run a clean zpool scrub and verify zero data errors before executing long-term immutable snapshot replication.

Long-Term Data Integrity Checklist

Audit your storage nodes quarterly using these objective technical milestones:

External Authoritative Sources & Further Reading

• IEEE Xplore: An Analysis of Silent Data Corruption in Large-Scale Storage Clusters
• National Institute of Standards and Technology (NIST): SP 800-88 Revision 1 - Guidelines for Media Sanitization and Storage Integrity
• CERN Data Centre: Results of High-Throughput Data Integrity Studies and Silent Bit Rot Detection
• Storage Networking Industry Association (SNIA): Data Protection and Integrity Standards

Disclaimer: The information provided in this guide is for educational and technical implementation purposes only. Managing enterprise storage pools, low-level filesystems, and cloud object architectures carries inherent risks of catastrophic data loss if commands are misapplied. Always maintain a verified, detached physical backup of critical files before restructuring filesystem partitions or reconfiguring RAID controllers.
